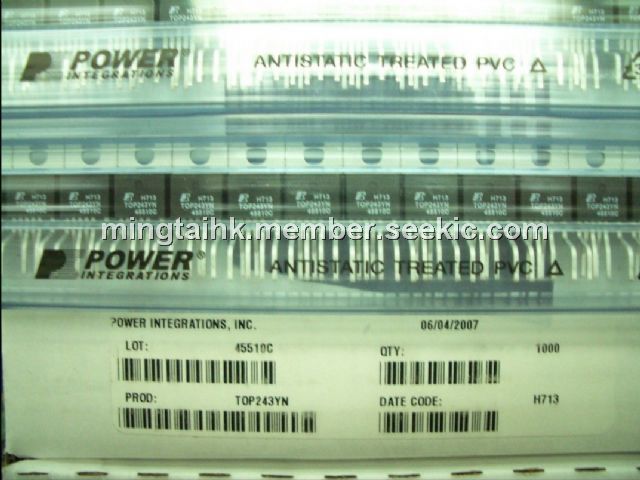

TOP243YN

Integrated Off-line Switcher, TO220, 34W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.85~0.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.85~0.95

PartNumber:: TOP243YN

Brand:: Power Integrations, Inc. - Power | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jiming Yao's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-29

From Other Seller

Part Number:TOP243YN
US $0.85 - 0.95
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TOP243YN is an Integrated Off-line Switcher.

Parametrics

Absolute maximum ratings: (1)DRAIN Voltage:-0.3 V to 700 V ; (2)CONTROL Voltage: -0.3 V to 9 V; (3)CONTROL Current:100 mA ; (4)LINE SENSE Pin Voltage:-0.3 V to 9 V ; (5)CURRENT LIMIT Pin Voltage:-0.3 V to 4.5 V ; (6)MULTI-FUNCTION Pin Voltage:- 0.3 V to 9 V ; (7)FREQUENCY Pin Voltage:-0.3 V to 9 V ; (8)Storage Temperature:-65℃ to 150℃ ; (9)Operating Junction Temperature:-40℃ to 150℃; (10)Lead Temperature:260℃.

Features

Features: (1)Extended power range for higher power applications; (2)No heatsink required up to 34 W using P package; (3)Features eliminate or reduce cost of external components ; (4)Fully integrated soft-start for minimum stress/overshoot; (5)Externally programmable accurate current limit ; (6)Wider duty cycle for more power, smaller input capacitor; (7)Separate line sense and current limit pins on Y/R/F packages; (8)Line under-voltage (UV) detection: no turn off glitches; (9)Line overvoltage (OV) shutdown extends line surge limit; (10)Line feed-forward with maximum duty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line ; (11)Frequency jittering reduces EMI and EMI filtering costs; (12)Regulates to zero load without dummy loading; (13)132 kHz frequency reduces transformer/power supply size; (14)Half frequency option in Y/R/F packages for video applications; (15)Hysteretic thermal shutdown for automatic fault recovery; (16)Large thermal hysteresis prevents PC board overheating.
