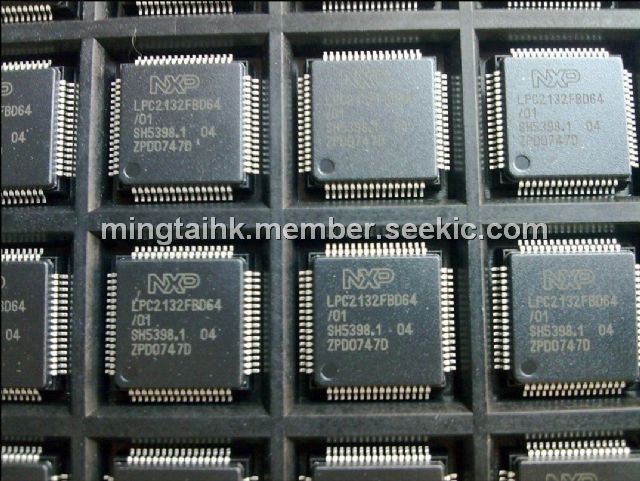

LPC2132FBD64

Single-chip, microcontroller, SOT314-2

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.63~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.63~2.80

PartNumber:: LPC2132FBD64

Brand:: | Pack: LQFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jiming Yao's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-26

From Other Seller

Part Number:LPC2132FBD64
US $2.63 - 2.80
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LPC2132FBD64 is a Single-chip microcontroller. It is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support.

Parametrics

Absolute maximum ratings: (1)supply voltage:-0.5V to +3.6V; (2)analog 3.3 V pad supply voltage:-0.5V to +4.6V; (3)input voltage on pin VBAT:-0.5V to +4.6V; (4)input voltage on pin VREF:-0.5V to +4.6V; (5)analog input voltage:-0.5V to +5.1V; (6)input voltage:-0.5V to +6.0V; (7)supply current per supply pin:100mA; (8)ground current per ground pin:100mA; (9)storage temperature:-40℃ to +125℃; (10)total power dissipation (per package):1.5W.

Features

Features: (1)Low power Real-time clock with independent power and dedicated 32 kHz clock input; (2)Multiple serial interfaces including two UARTs (16C550), two Fast I2C-bus (400 kbit/s),SPI and SSP with buffering and variable data length capabilities; (3)Vectored interrupt controller with con?gurable priorities and vector addresses; (4)Up to forty-seven 5 V tolerant general purpose I/O pins in tiny LQFP64 or HVQFN package; (5)Up to nine edge or level sensitive external interrupt pins available; (6)60 MHz maximum CPU clock available from programmable on-chip PLL with settling time of 100 μs; (7)On-chip integrated oscillator operates with external crystal in range of 1MHz to 30MHz and with external oscillator up to 50MHz; (8)Power saving modes include Idle and Power-down; (9)Individual enable/disable of peripheral functions as well as peripheral clock scaling down for additional power optimization; (10)Processor wake-up from Power-down mode via external interrupt or BOD.
