Product Summary

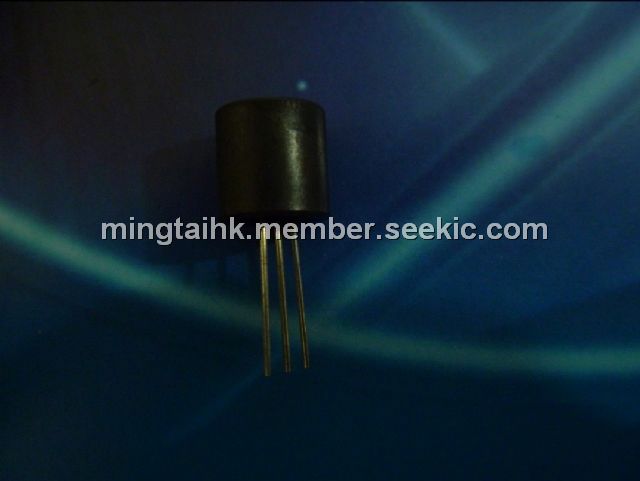

The FP210L100-22 is a Differential Magnetoresistive Sensor. It consists of two series coupled L-type InSb/NiSb semiconductor resistors. The FP210L100-22 is encapsulated in a plastic package with three in-line contacts extending from the base. The applications of the FP210L100-22 are Detection of speed, Detection of position, Detection of sense of rotation, Angle encoder, Linear position sensing. A permanent magnet which supplies a biasing magnetic field is built into the housing.
Parametrics
FP210L100-22 absolute maximum ratings: (1)Operating temperature:-40 to +140℃; (2)Storage temperature:-40 to +150℃; (3)Power dissipation:400mW; (4)Supply voltage:7.5V; (5)Insulation voltage between terminals and casing:＞ 100V; (6)Thermal conductivity:≥ 5 mW/K.
Features
FP210L100-22 features: (1)High operating temperature; (2)High output voltage; (3)Robust cylindrical housing; (4)Biasing magnet build in; (5)Signal amplitude independent of speed; (6)Easily connectable.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FP210L100-22 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
FP210L100-22 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
