Product Summary
The PTH04070WAH is a highly integrated, low-cost switching regulator module that delivers up to 3 A of output current. Occupying less PCB area than a standard TO-220 linear regulator IC, the PTH04070WAH provides output current at a much higher efficiency and with much less power dissipation, thereby eliminating the need for a heat sink. The input voltage range of the PTH04070WAH is from 3 V to 5.5 V, allowing operation from either a 3.3-V or 5-V input bus. Using state-of-the-art switched-mode power-conversion technology, the device can step down to voltages as low as 0.9 V from a 5-V input bus, with typically less than 1 W of power dissipation. It is used in Telecommunications, Instumentation, and General-Purpose Circuits.
Parametrics
PTH04070WAH absolute maximum ratings: (1)TA Operating free-air temperature: -40 to 85℃; (2)Twave Wave solder temperature: 260℃; (3)Treflow Solder reflow temperature: 260℃; (4)Tstg Storage temperature: -55 to 125℃.
Features
PTH04070WAH features: (1)Up to 3-A Output Current at 85℃; (2)Surface Mount Package; (3)Safety Agency Approvals: UL/IEC/CSA-C22.2 60950-1; (4)3.3-V / 5-V Input Voltage ; (5)Wide-Output Voltage Adjust(0.9 V to 3.6 V); (6)160 W/in3 Power Density; (7)Efficiencies Up To 94%; (8)On/Off Inhibit; (9)Undervoltage Lockout (UVLO); (10)Output Overcurrent Protection(Nonlatching, Auto-Reset); (11)Overtemperature Protection; (12)Ambient Temp. Range: –40℃ to 85℃.

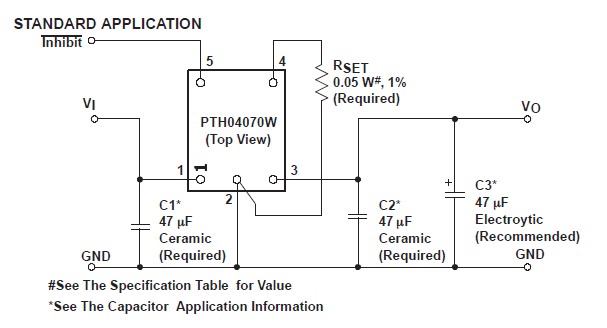

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PTH04070WAH |
Texas Instruments |
DC/DC Converters 3-A 3.3/5-V Input Adj Swtch Regulator |
Data Sheet |
|
|
||||||||||||
