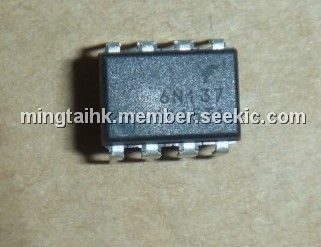

Product Summary

The 6N137 is a logic gate optocoupler. The 6N137, HCPL-2601/2611 single-channel and HCPL-2630/2631 dual-channel optocouplers consist of a 850 nm AlGaASLED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output. The 6N137 output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40℃ to +85℃. A maximum input signal of 5 mA will provide a minimum output sink current of 13mA (fan out of 8).
An internal noise shield provides superior common mode rejection of typically 10kV/μs. The HCPL- 2601 and HCPL- 2631 has a minimum CMR of 5 kV/μs.The HCPL-2611 has a minimum CMR of 10 kV/μs.

Parametrics

6N137 absolute maximum ratings: (1) Storage Temperature : -55 to +125℃; (2) DC/Average Forward (Single channel) : 50 mA; (3) Reverse Input Voltage (Each channel) : 5.0 V; (4) Power Dissipation (Single channel) : 100 mW; (5) Supply Voltage : 7.0 V; (6) Output Current (Single channel) : 50mA.

Features

6N137 features: (1)Very high speed-10 MBit/s; (2)Superior CMR-10 kV/μs; (3)Double working voltage-480V; (4)Fan-out of 8 over -40℃ to +85℃; (5)Logic gate output; (6)Strobable output; (7)Wired OR-open collector; (8)U.L. recognized (File # E90700).

Diagrams

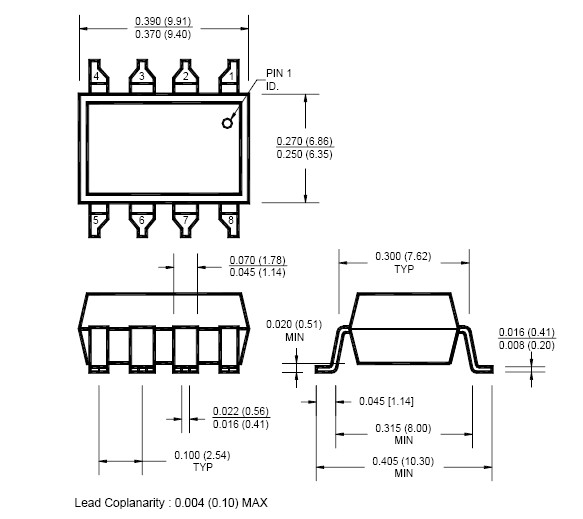

6N137 dimension
