SN65LV1224BDBR

Product Summary

The SN65LV1224BDBR is a 10-bit serdes chipset designed to transmit and receive serial data over LVDS differential backplanes at equivalent parallel word rates from 10 MHz to 66 MHz. Including overhead, this translates into a serial data rate between 120-Mbps and 792-Mbps payload encoded throughput. Upon power up, the chipset link can be initialized via a synchronization mode with internally generated SYNC patterns or the deserializer can be allowed to synchronize to random data. By using the synchronization mode, the deserializer establishes lock within specified, shorter time parameters. The device can be entered into a power-down state when no data transfer is required. Alternatively, a mode is available to place the output pins in the high-impedance state without losing PLL lock. The SN65LV1224BDBR is characterized for operation over ambient air temperature of -40℃ to 85℃.

Parametrics

Absolute Maximum Ratings: (1)VCC to GND: -0.3V to 4V; (2)LVTTL input voltage: -0.3V to (VCC+0.3V); (3)LVTTL output voltage: -0.3V to (VCC+0.3V); (4)LVDS receiver input voltage: -0.3V to 3.9V; (5)LVDS driver output voltage: -0.3V to 3.9V; (6)LVDS output short circuit duration: 10ms; (7)Electrostatic discharge: up to 200V; (8)Junction temperature: 150℃; (9)Storage temperature: -65℃ to 150℃; (10)Lead temperature (soldering, 4 seconds): 260℃; (11)DB package maximum package TA = 25℃: 1.27 W; (12)power dissipation DB package derating: 10.3 mW/℃ above 25℃.

Features

Features: (1)100-Mbps to 660-Mbps Serial LVDS Data; (2)Payload Bandwidth at 10MHz to 66MHz System Clock; (3)Pin-Compatible Superset of DS92LV1023/ DS92LV1224; (4)Chipset (Serializer/Deserializer) Power Consumption <450 mW (Typ) at 66 MHz; (5)Synchronization Mode for Faster Lock; (6)Lock Indicator; (7)No External Components Required for PLL; (8)28-Pin SSOP and Space Saving 5X5 mm QFN Packages Available; (9)Industrial Temperature Qualified, TA = -40℃ to 85℃; (10)Programmable Edge Trigger on Clock; (11)Flow-Through Pinout for Easy PCB Layout.

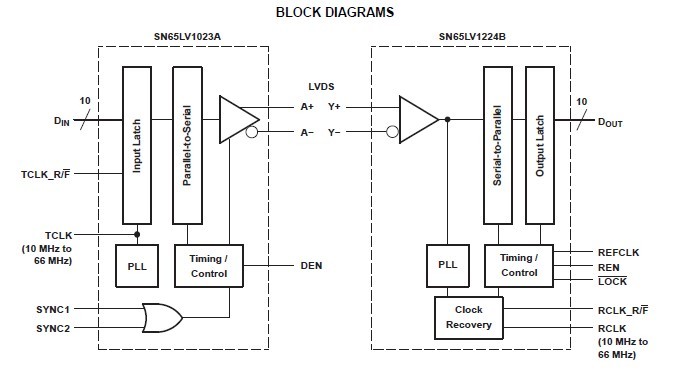

Diagrams
