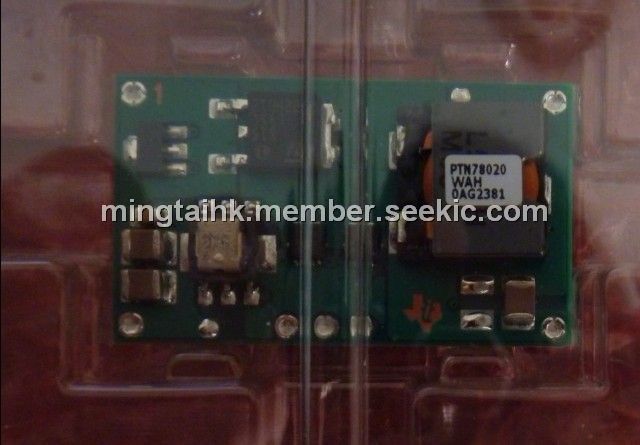

PTN78020WAH

step-down integrated switching regulator, 2.5 to 12.6V, 6A, DIP-7, 90 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $20.00~20.00

PartNumber:: PTN78020WAH

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jiming Yao's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-24

From Other Seller

Part Number:PTN78020WAH
US $20.00 - 20.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

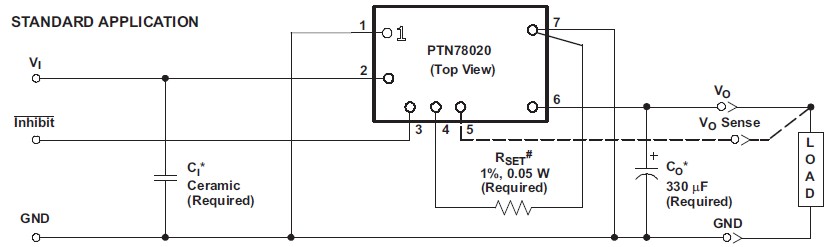

Product Summary

The PTN78020WAH is a high-efficiency, step-down integrated switching regulator (ISR), that represents the third generation in the evolution of high-performance power modules designed for industrial use. The wide-input voltage range makes the PTN78020WAH suitable for a variety of applications that operate off 12–V, 24–V, and 28–V dc power. In new designs it should be considered in place of the PT6620, PT6650, PT6680, and PT6880 series of single in-line pin (SIP) products. The PTN78020WAH is smaller and lighter than its predecessors, and has either similar or improved electrical performance characteristics. It is used in General-Purpose, Industrial Controls, HVAC Systems, Test and Measurement, Medical Instrumentation, AC/DC Adaptors, Vehicles, Marine, and Avionics.

Parametrics

PTN78020WAH absolute maximum ratings: (1)TA Operating free-air temperature: –40℃ to 85℃; (2)Solder reflow temperature: 235℃; (3)Tstg Storage temperature: –55℃ to 125℃; (4)VI Input surge voltage, 10 ms maximum: 38 V; (5)V(Inhibit) Inhibit (pin 3) input voltage: –0.3 V to 5 V; (6)PO Output power: 90 W.

Features

PTN78020WAH features: (1)6-A Output Current; (2)Wide-Input Voltage(7 V to 36 V) / (15 V to 36 V); (3)Wide-Output Voltage Adjust(2.5 V to 12.6 V) / (11.85 V to 22 V); (4)High Efficiency (Up to 96%); (5)On/Off Inhibit; (6)Under-Voltage Lockout; (7)Output Current Limit; (8)Overtemperature Shutdown; (9)Operating Temperature: -40℃ to 85℃; (10)Surface Mount Package Available.
