Product Summary

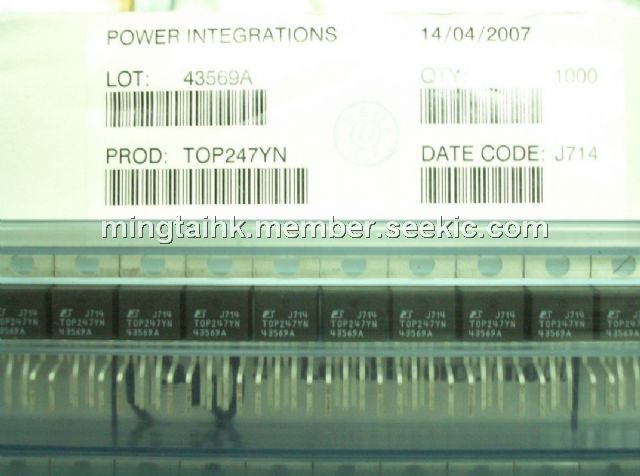

The TOP247YN is a member of TOPSwitch-GX Family. It is available in Plastic TO-220-7C package. TOPSwitch-GX uses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new functions are integrated to reduce system cost and improve design flexibility, performance and energy efficiency.
Parametrics
Absolute maximum ratings: (1)DRAIN Voltage: -0.3 V to 700 V; (2)DRAIN Peak Current: 5.76 A; (3)CONTROL Voltage: -0.3 V to 9 V; (4)CONTROL Current: 100 mA; (5)LINE SENSE Pin Voltage: -0.3 V to 9 V; (6)CURRENT LIMIT Pin Voltage: -0.3 V to 4.5 V; (7)MULTI-FUNCTION Pin Voltage: - 0.3 V to 9 V; (8)FREQUENCY Pin Voltage: -0.3 V to 9 V; (9)Storage Temperature: -65℃ to 150℃; (10)Operating Junction Temperature: -40℃ to 150℃; (11)Lead Temperature: 260℃.
Features
Features: (1)Extended power range for higher power applications; (2)No heatsink required up to 34 W using P package; (3)Features eliminate or reduce cost of external components; (4)Fully integrated soft-start for minimum stress/overshoot; (5)Externally programmable accurate current limit; (6)Wider duty cycle for more power, smaller input capacitor; (7)Separate line sense and current limit pins on Y/R/F packages; (8)Line under-voltage (UV) detection: no turn off glitches; (9)Line overvoltage (OV) shutdown extends line surge limit; (10)Line feed-forward with maximum duty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line; (11)Frequency jittering reduces EMI and EMI filtering costs; (12)Regulates to zero load without dummy loading; (13)132 kHz frequency reduces transformer/power supply size; (14)Half frequency option in Y/R/F packages for video applications; (15)Hysteretic thermal shutdown for automatic fault recovery; (16)Large thermal hysteresis prevents PC board overheating.

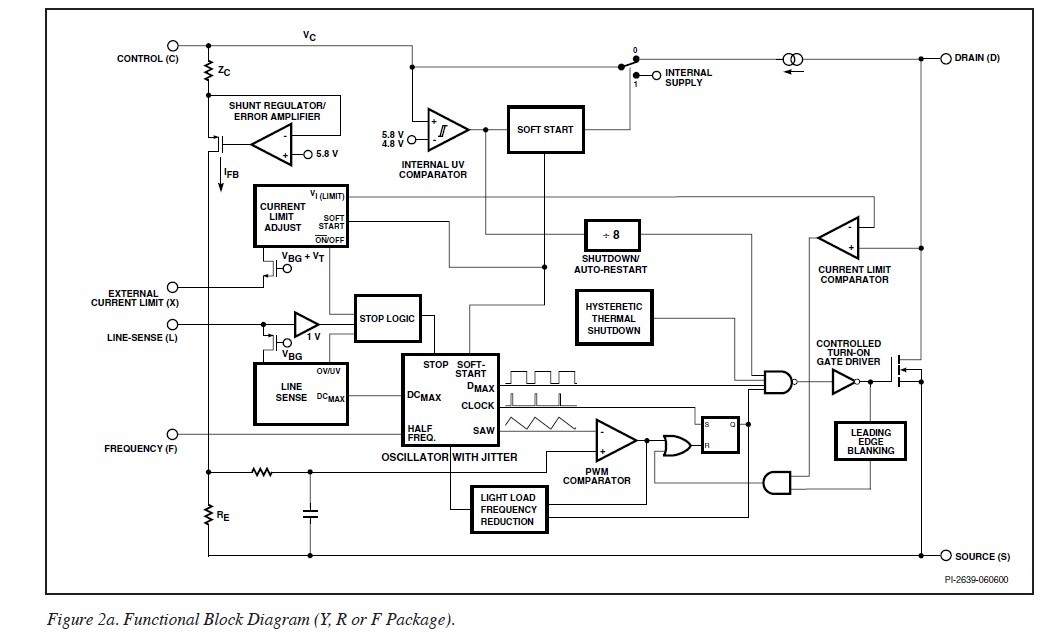

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TOP247YN |
Power Integrations |
AC/DC Switching Converters 128 W 85-265 VAC 165 W 230 VAC |
Data Sheet |
|
|
||||||||||||
