Product Summary

The TNY268PN is an Enhanced, Energy Efficient, Low Power Off-line Switcher.

Parametrics

Absolute maximum ratings: (1)DRAIN Voltage: - 0.3 V to 700 V; (2)Peak DRAIN Current: 880 mA; (3)EN/UV Voltage: - 0.3 V to 9 V; (4)EN/UV Current: 100 mA; (5)BYPASS Voltage: -0.3 V to 9 V; (6)Storage Temperature: -65 to 150 ℃; (7)Operating Junction Temperature: -40 to 150 ℃; (8)Lead Temperature: 260 ℃.

Features

Features: (1)Fully integrated auto-restart for short circuit and open loop fault protection-saves external component costs; (2)Built-in circuitry practically eliminates audible noise with ordinary varnished transformer; (3)Programmable line under-voltage detect feature prevents power on/off glitches-saves external components; (4)Frequency jittering dramatically reduces EMI (~10 dB)-minimizes EMI filter component costs.

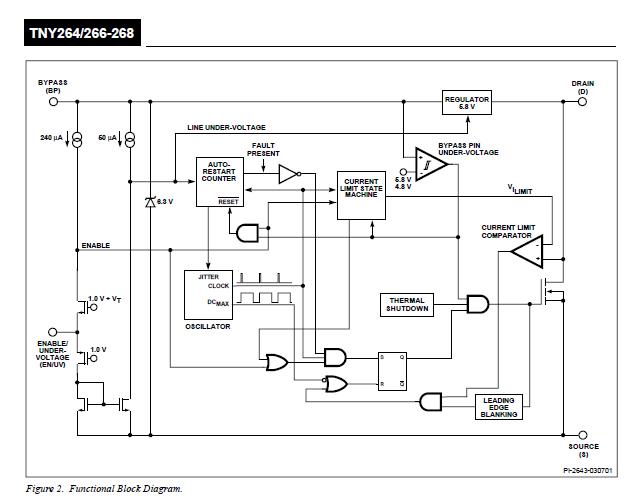

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

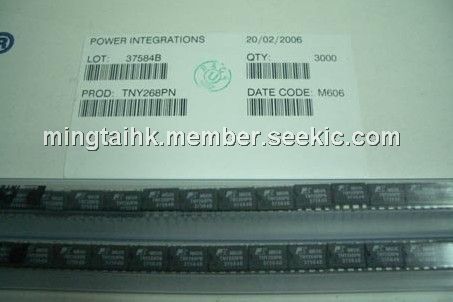

TNY268PN
TNY268PN
Power Integrations
AC/DC Switching Converters 15W 85-265 VAC 19W/230 VAC
Data Sheet
0-1: $1.19
1-25: $1.11
25-100: $0.80
100-250: $0.63
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TNY253
TNY253
Other

Data Sheet
Negotiable
TNY253G
TNY253G
Power Integrations
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC
Data Sheet
Negotiable
TNY253GN
TNY253GN
Power Integrations
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC
Data Sheet
0-1: $0.76
1-25: $0.68
25-100: $0.61
100-250: $0.57
TNY253GN-TL
TNY253GN-TL
Power Integrations
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC
Data Sheet
0-760: $0.52
760-1000: $0.51
TNY253G-TL
TNY253G-TL
Power Integrations
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC
Data Sheet
Negotiable
TNY253P
TNY253P
Power Integrations
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC
Data Sheet
Negotiable
